KCRC West Rail Pat Heung Maintenance Centre ECS PLC System

Print】【Back to Mice Project

    Pat Heung Maintenance Centre of KCRC West Rail has total 8 PLCs were installed for environmental monitoring and control which including chiller plant system, EAF, FAF, AHU and PAU system. Operator can operate and monitor all the system through HMI WinCC. It allows effective control of systems in the station for increasing energy efficiency, temperature conditioning and air quality control, etc.

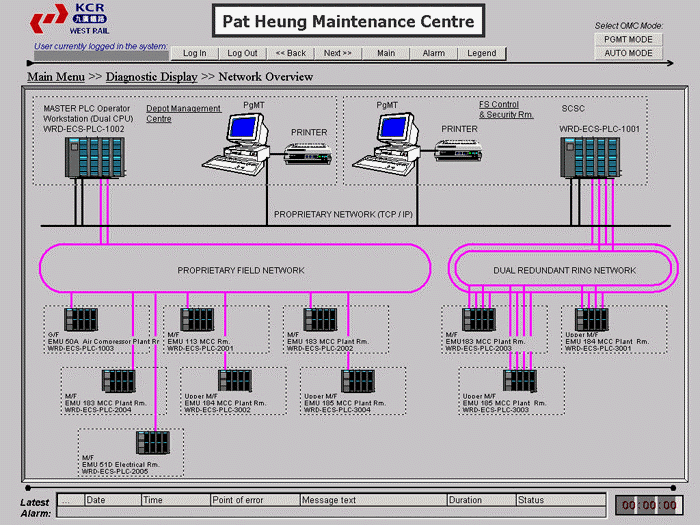

System Structure

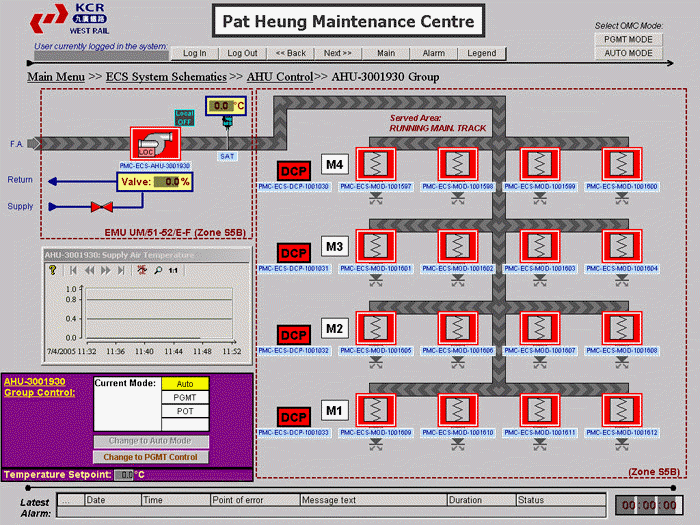

Served Area

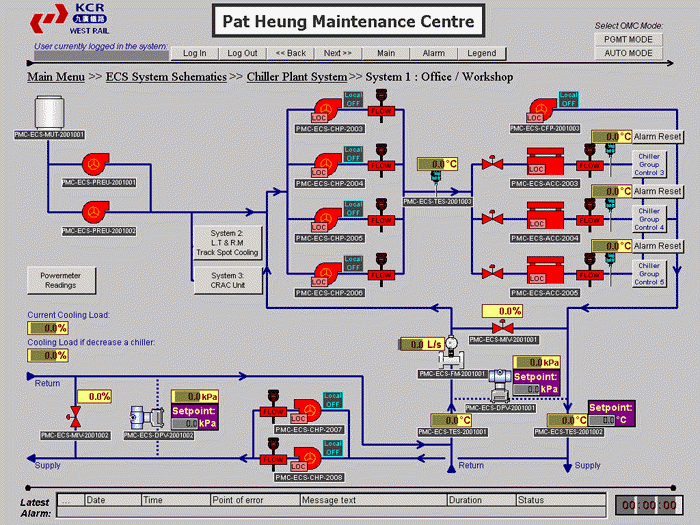

Chiller Plant System

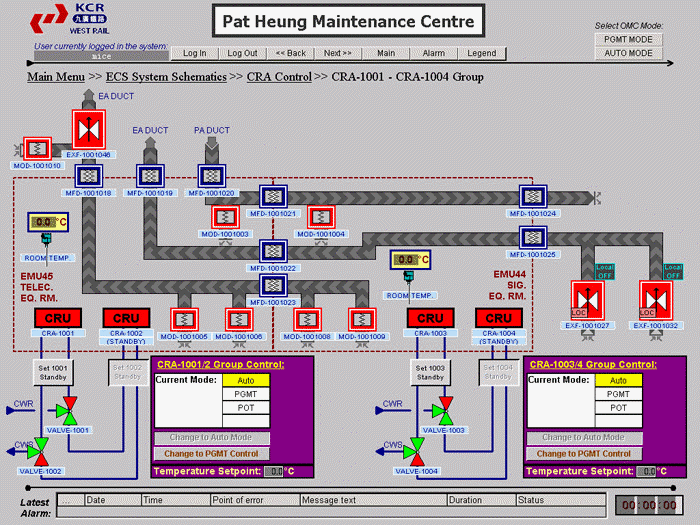

CRA Control
