Kowloon City Auto Car-Parking System

Print】【Back to Mice Project

    The car park is located under a residence at Kowloon City. It has total 3 floors which providing 75 parking spaces. In this project, PLC is used to monitor and control the mechanisms of auto car parking system including car size and weight checking, pallet handling and parking space management. All the operation can be monitored from HMI.

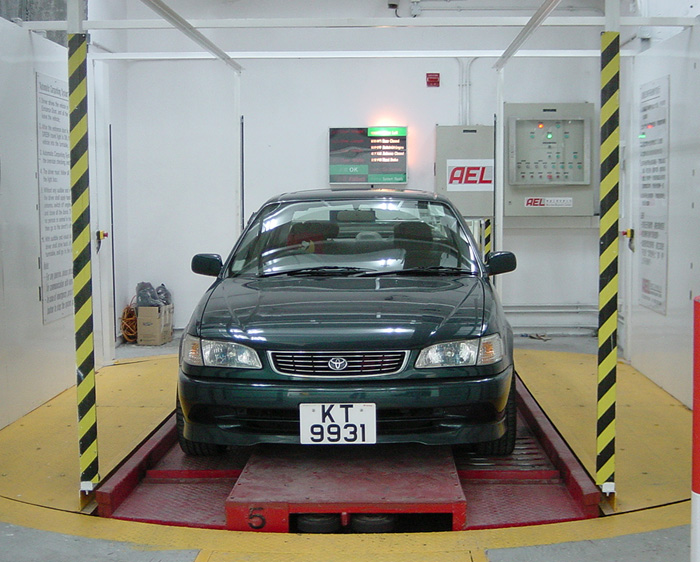

Lift System

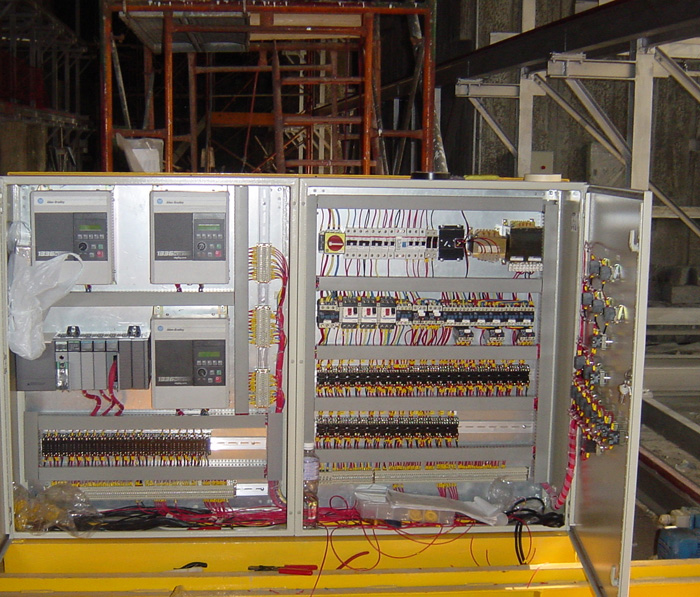

PLC

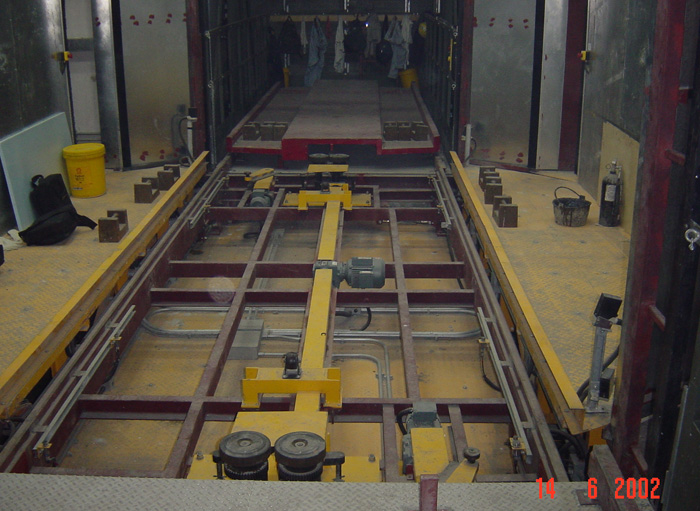

Conveyor Control


Searching for Parking Space
