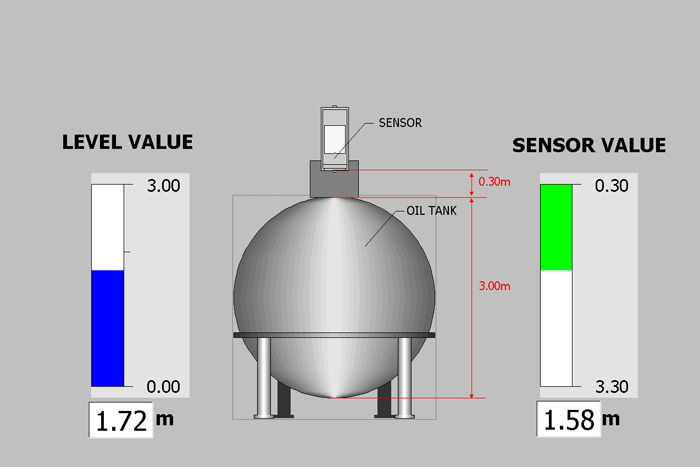

The project is used PLC to monitor the oil level of Genset oil tank. The ultrasonic level transmitters are used to detect the level of oil. S7-200 PLC receives the signal from the transmitters and a touch panel shows the information of the system, such as oil level.

System Testing

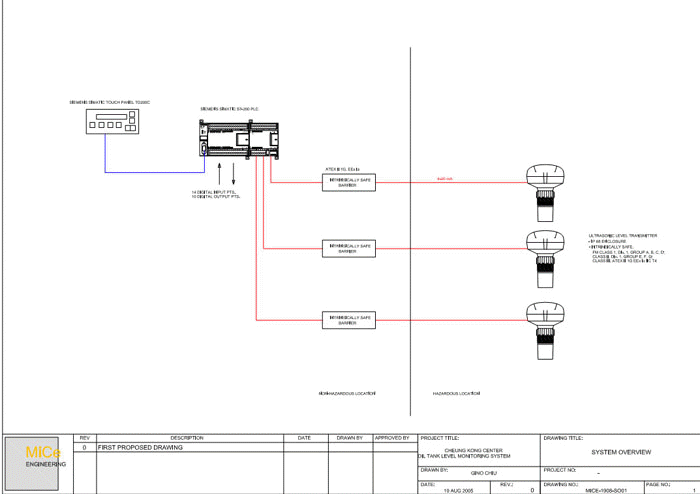

System Structure

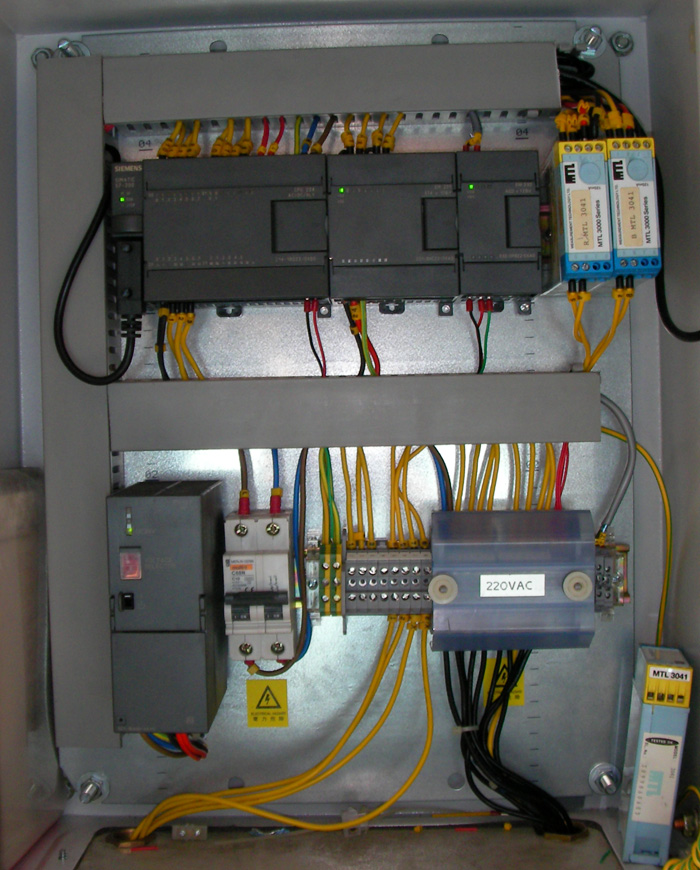

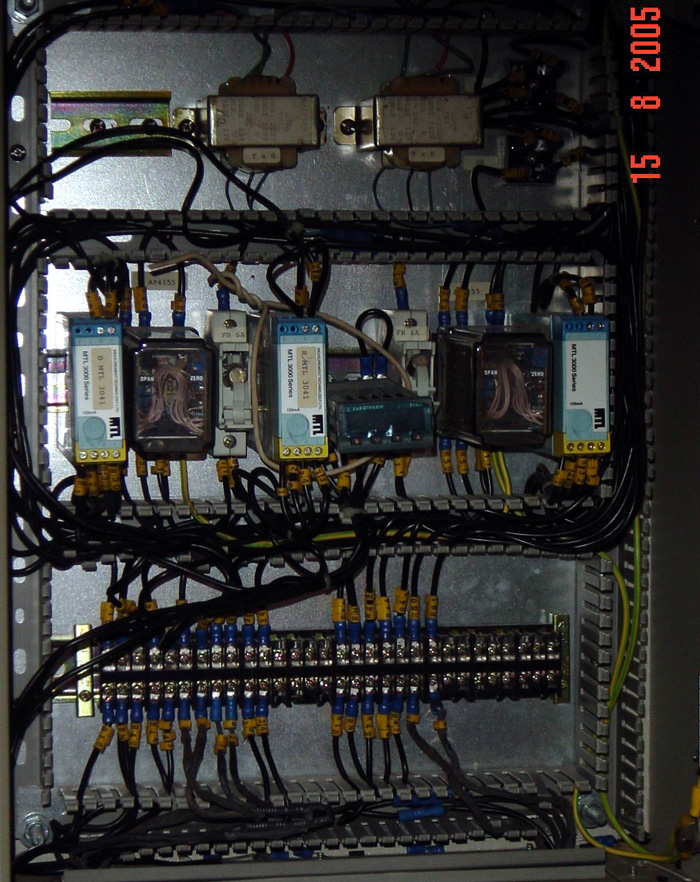

Control Panel

S7-200 PLC
